PRO-CLAMP 5-Axis Vice

PRO-CLAMP 5-Axis Vice has a second to none clamping distance, and is suitable for all kinds of clamping associated with 5-axis machining.

PRO-CLAMP 5-Axis Vice

PRO-CLAMP 5-Axis vice has a long clamping distance and is ideal for all kinds af clamping associated with 5-Axis machining. The clamping is normally adjusted mechanically, but the vice can also, optionally, be supplied with hydraulics. The unique design ensures a very large clamping range, as well as a high and uniform clamping force in the whole clamping range.

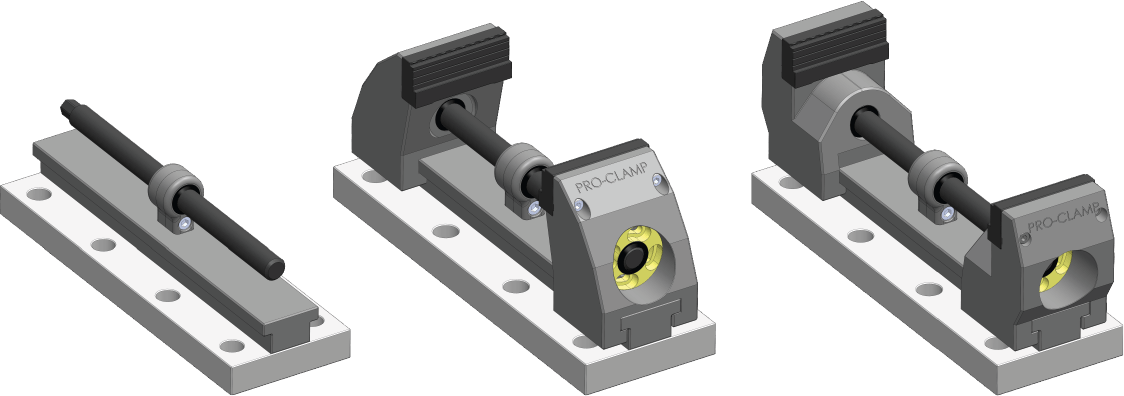

Centerspænder variant

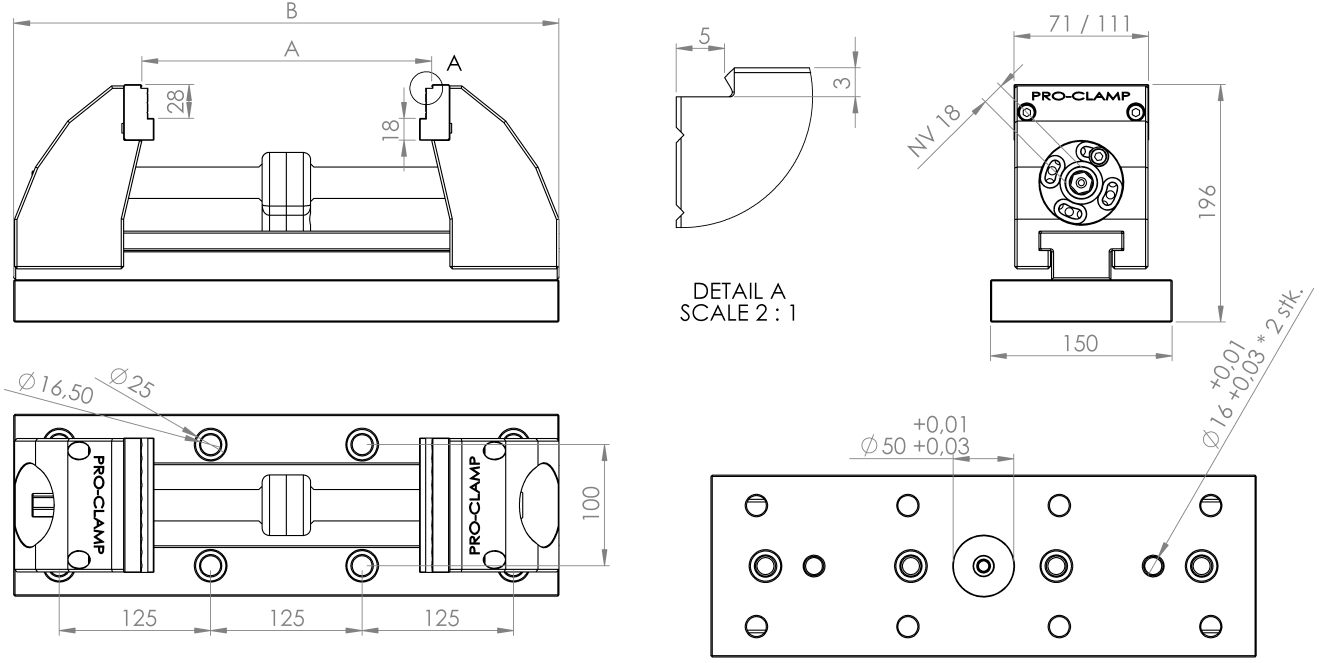

Centrerspænder tegning

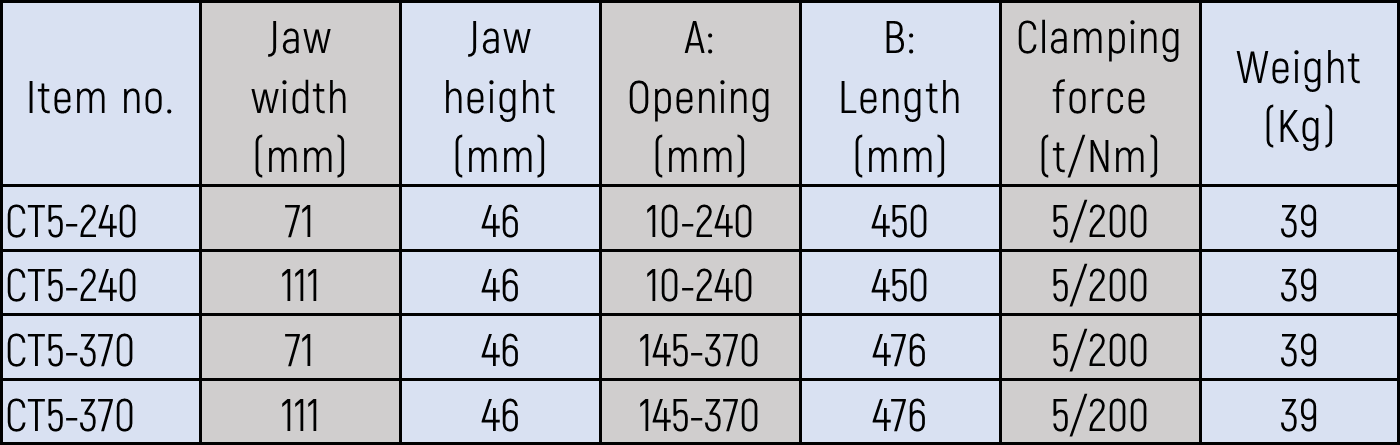

Datasheet PRO-CLAMP 5-Axis Vice

Centerspænder datasheet

Features of PRO-CLAMP 5-Axis vice



  • Centering Vice
  • Suitable for 5-Axis machining
  • Clamping range 10-240 mm or 145-370 mm
  • Clamping force 5 ton at 200 Nm
  • Can be mounted directly an the machine table
  • Stable and strong structure - stable clamping
  • Good room for the machines spindle
  • Calibrating af the center, can be performed by the operator
  • Jaws can be customised after customer's wishes
  • Jaw width, 71 and 111 mm
  • Easy to clean
