PRO-CLAMP Basic

If you need to work both vertically and horizontally, PRO-CLAMP Basic is the solution.

PRO-CLAMP Basic

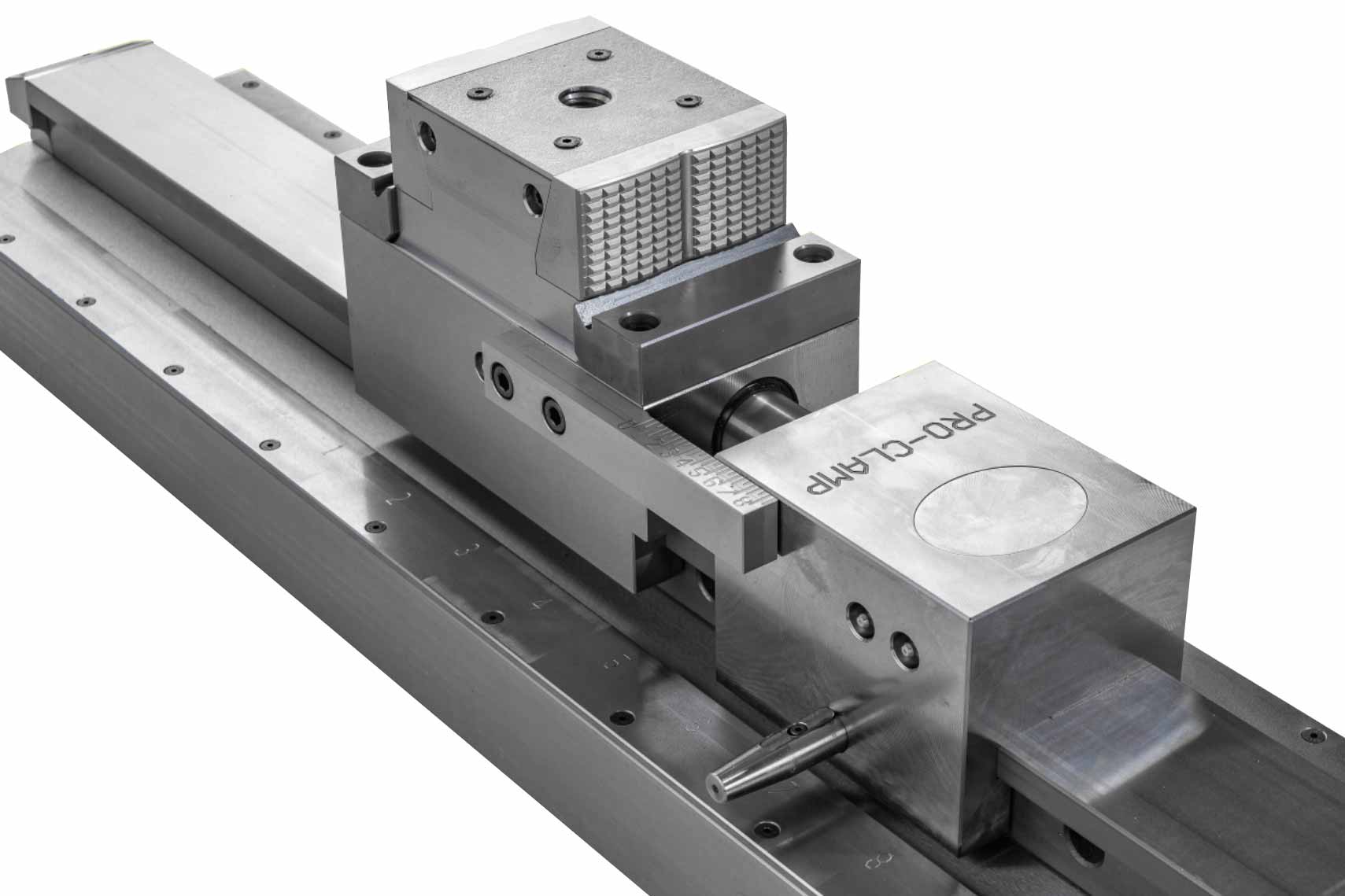

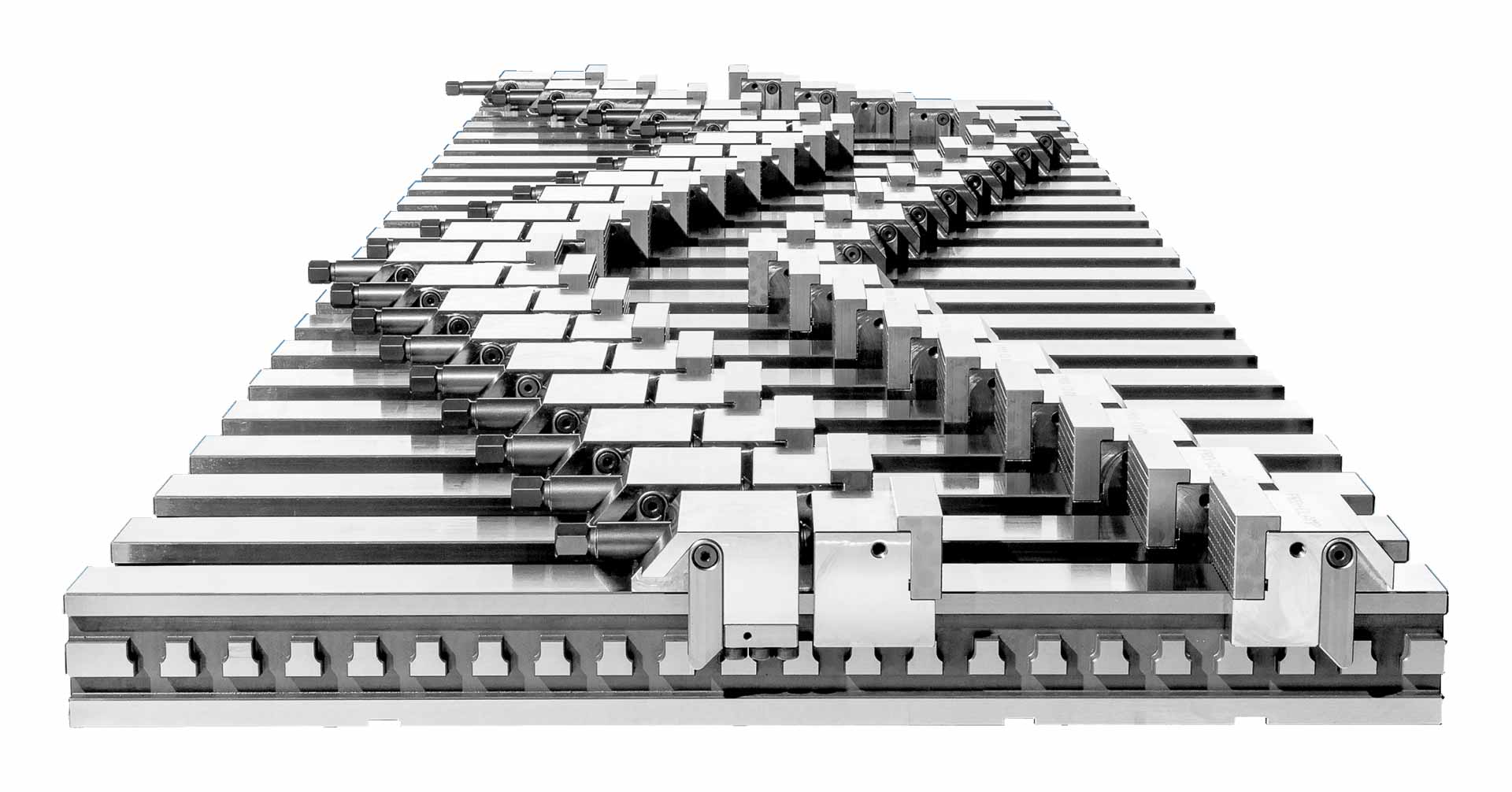

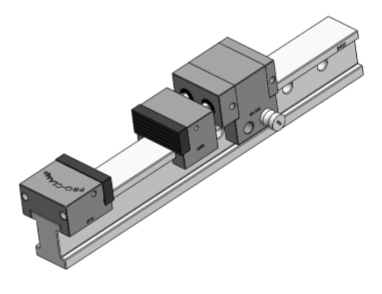

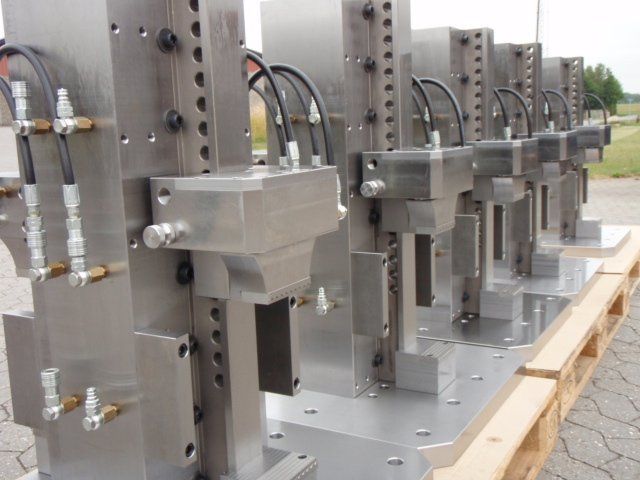

PRO-CLAMP Basic is the simple solution with few wear parts, where the fixed part is fastened to the body, and where there is also great flexibility. Clamping device can be moved in seconds in increments of 40 mm, and fixed in the body with a locking pin. This allows PRO-CLAMP Basic to be used with vertical clamping on cubes. Several clamping devices can be mounted on the body at the same time, and several vices can be lined up on the same table or on the same cube.

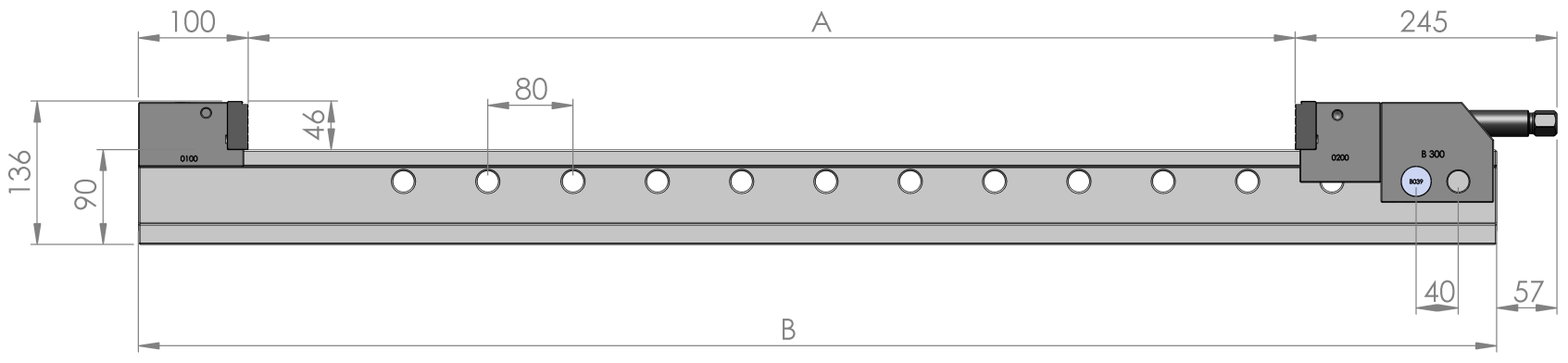

PRO-CLAMP Basic with single spindle

PRO-CLAMP Basic med enkeltspindel

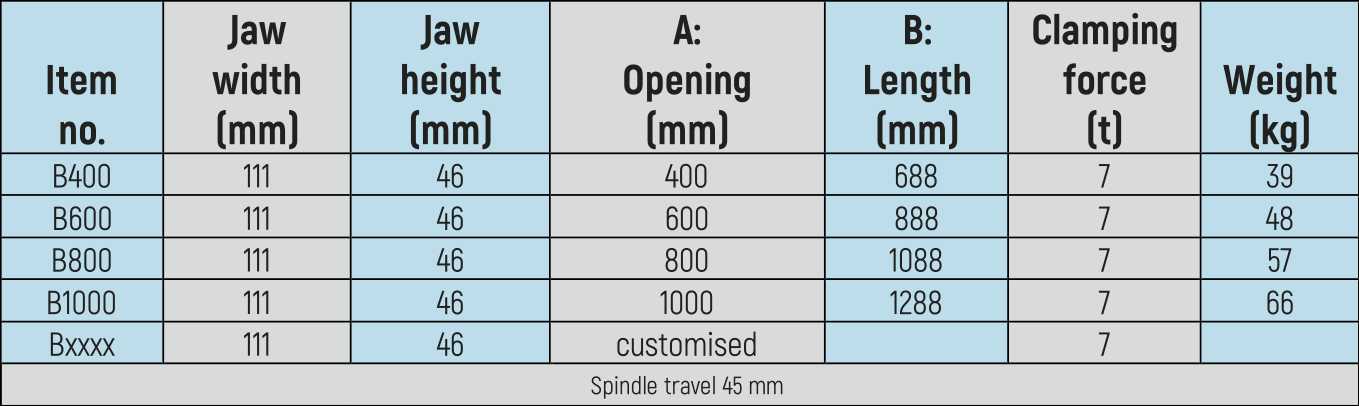

Datasheet PRO-CLAMP Basic with single spindle

PRO-CLAMP Basic data sheet

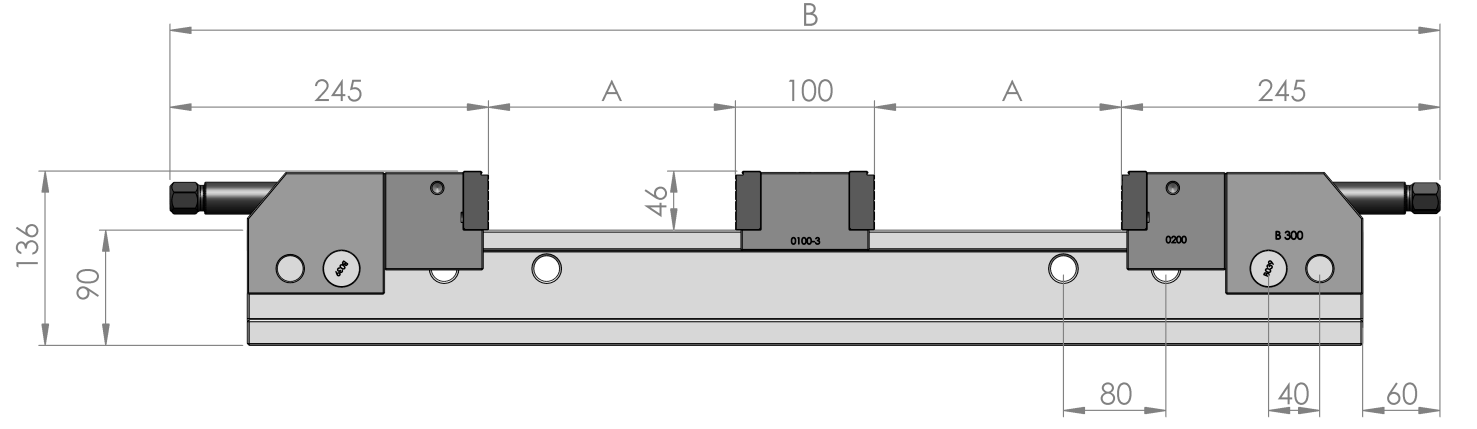

PRO-CLAMP Basic with double spindle

PRO-CLAMP Basic med dobbeltspindel

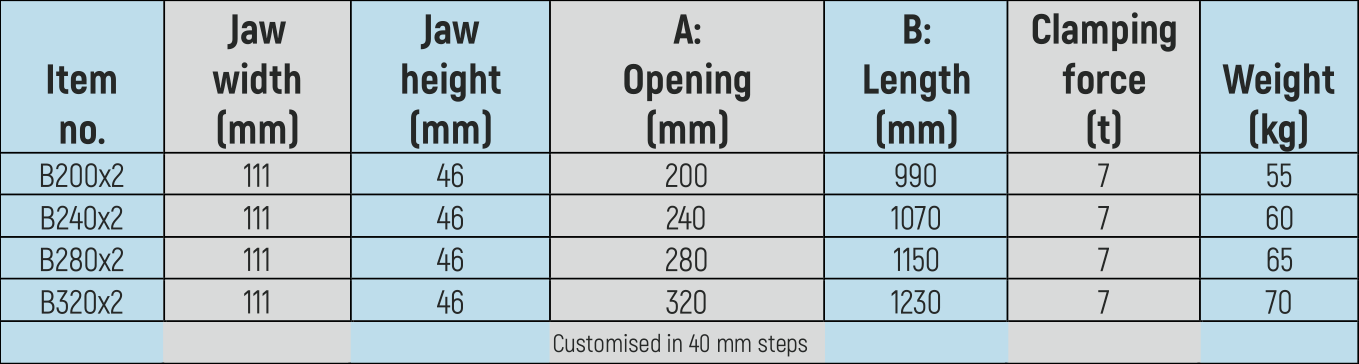

Datasheet PRO-CLAMP Basic with double spindle

PRO-CLAMP Basic data sheet

Features of PRO-CLAMP Basic

  • Clamping ane ar more workpieces Ideal for vertical fixing
  • Span standard up to 1000 mm
  • Spindle travel 45 mm
  • Can be adapted to specific customer requirements
PRO-CLAMP Basic

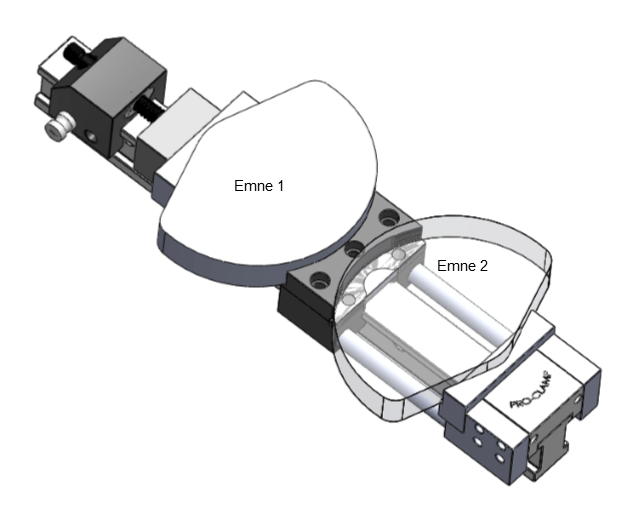

Example of PRO-CLAMP Basic 2-step with special hardened jaws

  • Place Workpiece 1 in the top position and tighten the spindle one round.
  • Workpiece 1 is then fixed with 500 kg.
  • Then place workpiece 2 in to the lowest position, and both workpieces are clamped simultaneously.
